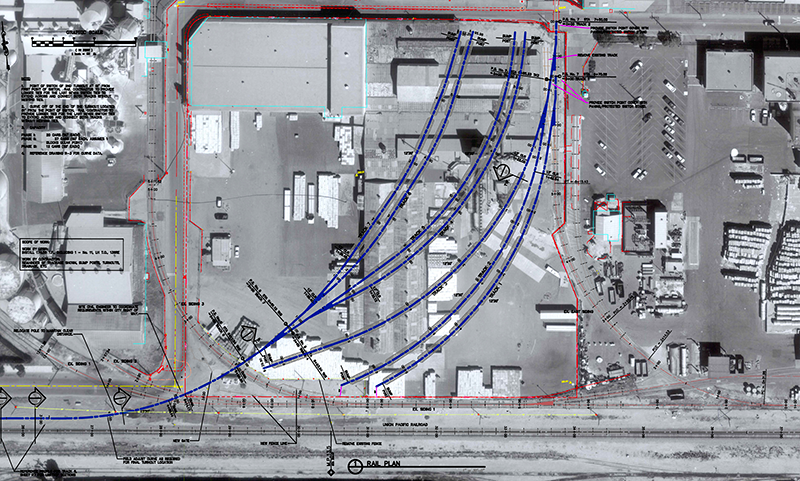

Aerial Plan


Designed in 2003 to 2004. Prepared construction plans for a 59 tank car transload facility in South Gate, CA on a 7 acre industrial site. The site was occupied by an old industrial building and the new owner desired to place as many tank car transload spots on the site as possible. This involved 12 ½ degree curves and No. 7 turnouts. The lead track crossed three existing spurs off of the UPRR main line and required custom fit diamond crossings. The complete facility was paved to provide truck access.

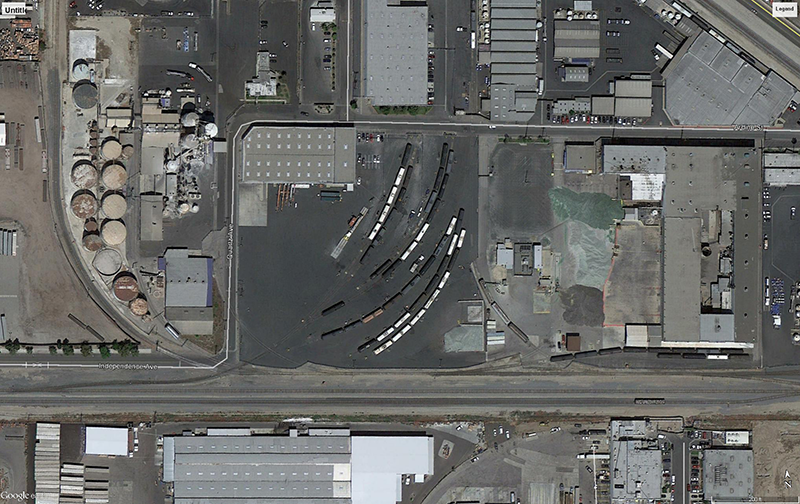

Aerial View
